Technical Centre

Cubicle Hardware

Every cubicle system ships with premium hardware as standard, available in SAA satin aluminium or matt black finish. Below is the full specification of components fitted to our washroom systems.

Locks & Indicators (2 finishes)

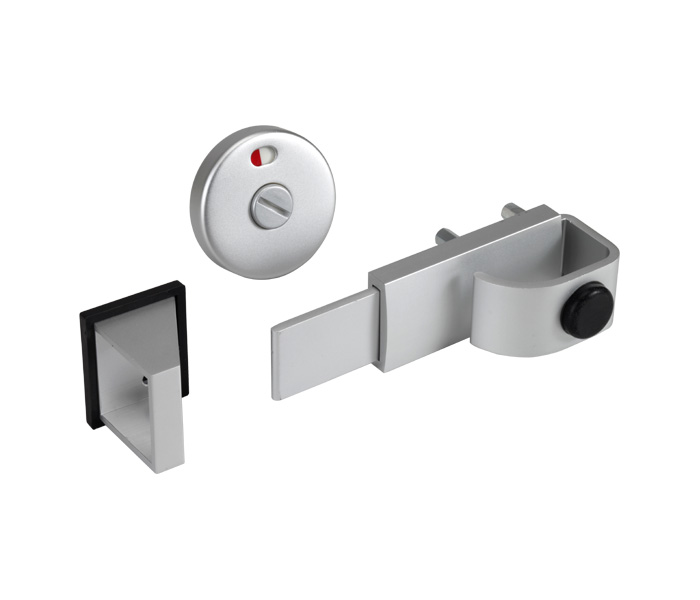

T204SA Lock T204SA slide indicator bolt with red/white indicator, satin anodised aluminium finish

Slide Indicator Bolt

DDA-compliant slide bolt with red/white indicator and coin release for emergency access. Concealed fixings for improved aesthetics and vandalism resistance.

  • Suitable for 13mm and 20mm boards
  • Slide action — operable with a clenched fist (DDA)
  • High-contrast red/white indicator for visually impaired
  • Coin release for emergency override
  • Concealed back-to-back bolt fixings
  • Supplied with open-in keep and rubber buffers
SAA — Satin Anodised Aluminium

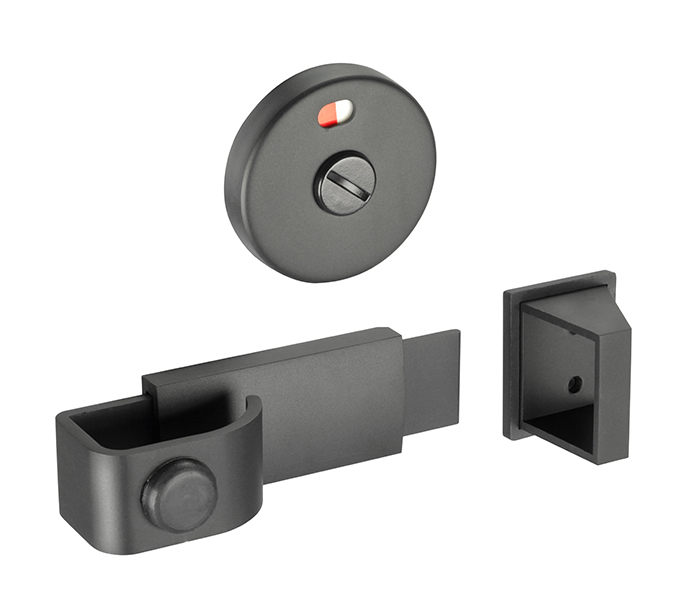

T204MB Lock T204MB slide indicator bolt with red/white indicator, matt black finish

Slide Indicator Bolt

DDA-compliant slide bolt with red/white indicator and coin release for emergency access. Concealed fixings for improved aesthetics and vandalism resistance.

  • Suitable for 13mm and 20mm boards
  • Slide action — operable with a clenched fist (DDA)
  • High-contrast red/white indicator for visually impaired
  • Coin release for emergency override
  • Concealed back-to-back bolt fixings
  • Supplied with open-in keep and rubber buffers
MB — Matt Black

Hinges (1 product)

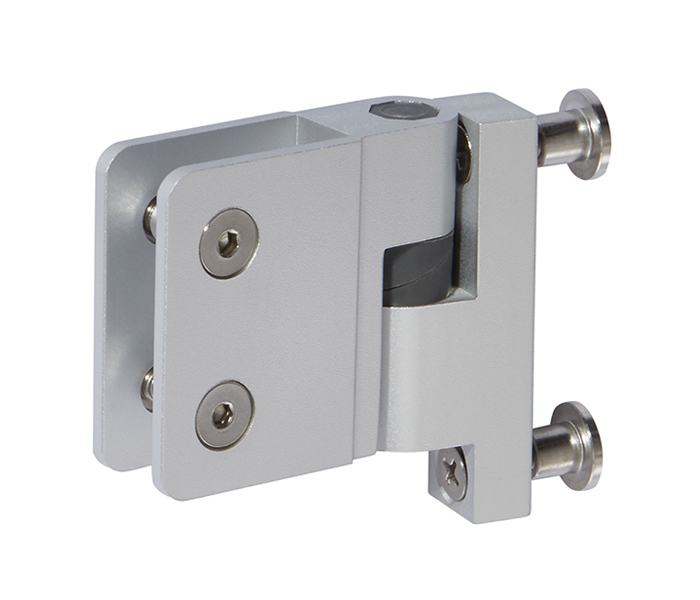

T130SA Hinge T130SA self-closing gravity hinge, U bracket style, satin anodised aluminium finish

Gravity Hinge — U Bracket Style

Self-closing gravity hinge with adjustable fall-open or fall-closed action. Wrap-around U bracket design for reinforced door mounting with lift-off capability.

  • Suitable for 13mm board
  • Adjustable fall open / fall closed
  • Lift-off capability for easy door removal
  • Non-handed — works on left or right
  • All stainless steel T-nuts and woodscrews
  • Cover plates included to conceal T-nuts
  • Extended screws for concealed pilaster installation
SAA — Satin Anodised Aluminium

Brackets & Fixings (4 products)

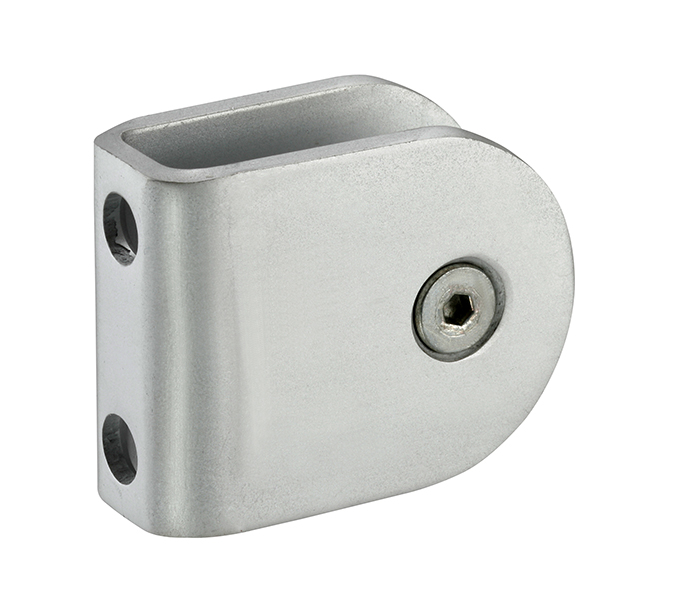

T410SA Bracket T410SA aluminium U bracket for partition panels, satin anodised aluminium finish

U Bracket

Aluminium U bracket for securing partition panels and pilasters to walls and floor-mounted supports. Supplied with wood screws and plastic plugs.

  • Suitable for 13mm board
  • Wood screws and plastic plugs included
  • Compatible with T194S bolt-through fixings
SAA — Satin Anodised Aluminium

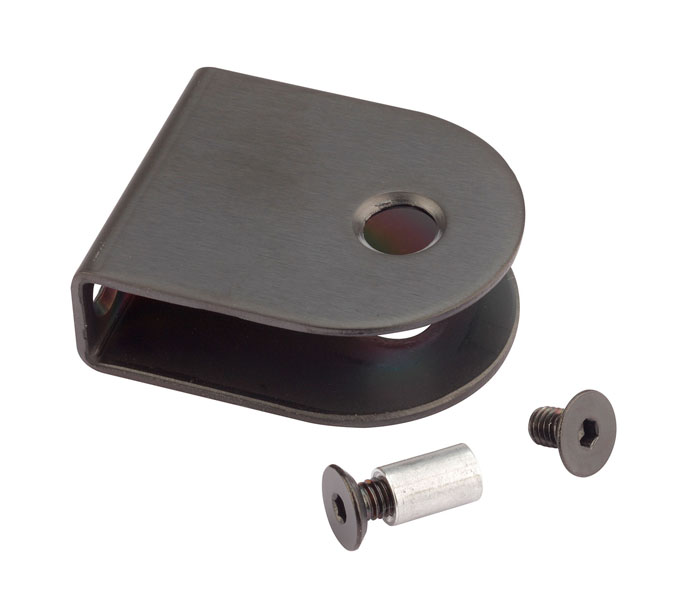

T410SMB Bracket T410SMB aluminium U bracket for partition panels, matt black finish

U Bracket

Aluminium U bracket for securing partition panels and pilasters to walls and floor-mounted supports. Supplied with wood screws and plastic plugs.

  • Suitable for 13mm board
  • Wood screws and plastic plugs included
  • Compatible with bolt-through fixings
MB — Matt Black

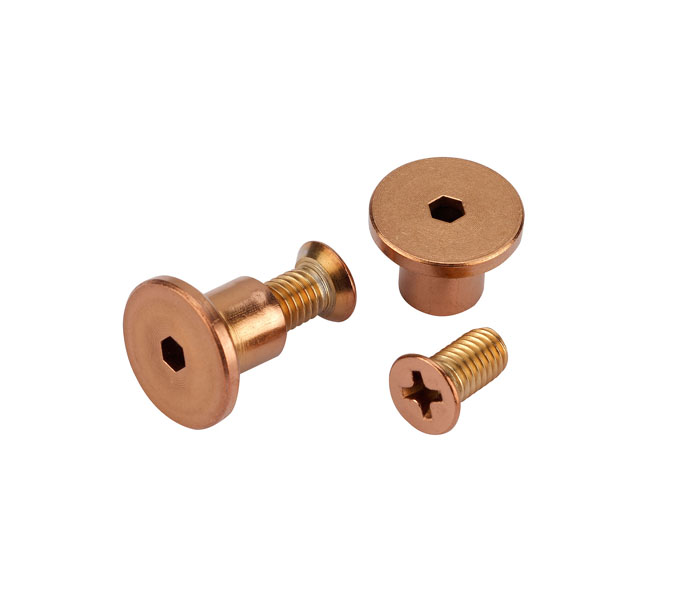

T194S Fixing T194S set of six countersunk bolts and T-nuts for bolt-through bracket fixing

Bolt-Through Fixing Set

Pack of 6 countersunk bolts and T-nuts for bolt-through fixing of L and U brackets. Provides a secure, permanent connection through partition boards.

  • Pack of 6 countersunk bolts & T-nuts
  • Suitable for 12mm board
  • Bolt-through fixing for L and U brackets
SSS — Satin Stainless Steel

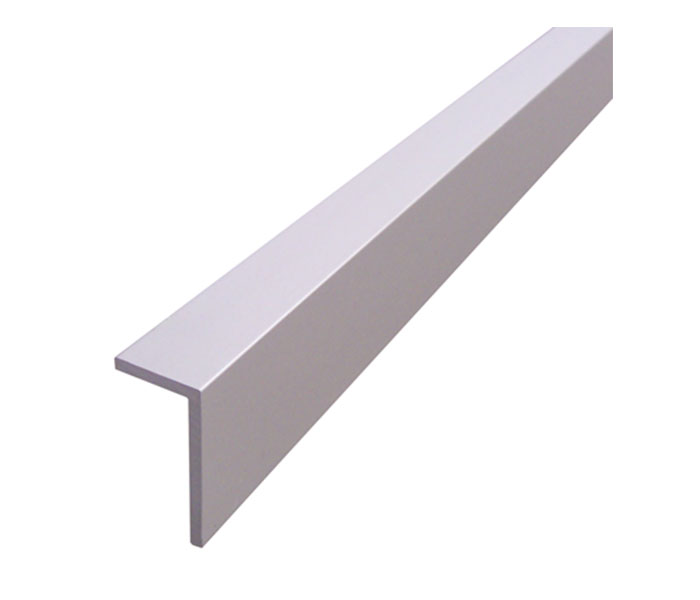

T965A Profile T965A aluminium angle extrusion, 40 by 20 by 3 millimetre profile

Aluminium Angle

4-metre aluminium angle extrusion used for headrail and structural support within the cubicle system. Cut to length on site as required.

  • 4m length (cut to size on site)
  • 40 × 20 × 3mm profile
  • Aluminium construction
SAA — Satin Anodised Aluminium

Supports & Accessories (3 products)

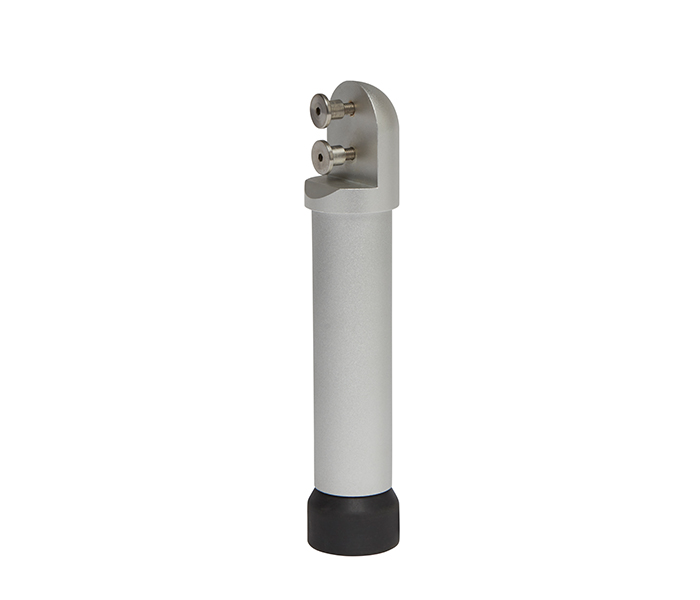

T353SA Leg T353SA dome top adjustable foot support leg, satin anodised aluminium finish

Dome Top Adjustable Foot Support

Height-adjustable aluminium leg with dome top cap, providing solid floor support for cubicle partitions. Through fixings and floor fixings supplied.

  • Suitable for 13–20mm boards
  • Adjustable height for uneven floors
  • Dome top cap for a clean finish
  • Through fixings and floor fixings supplied
SAA — Satin Anodised Aluminium

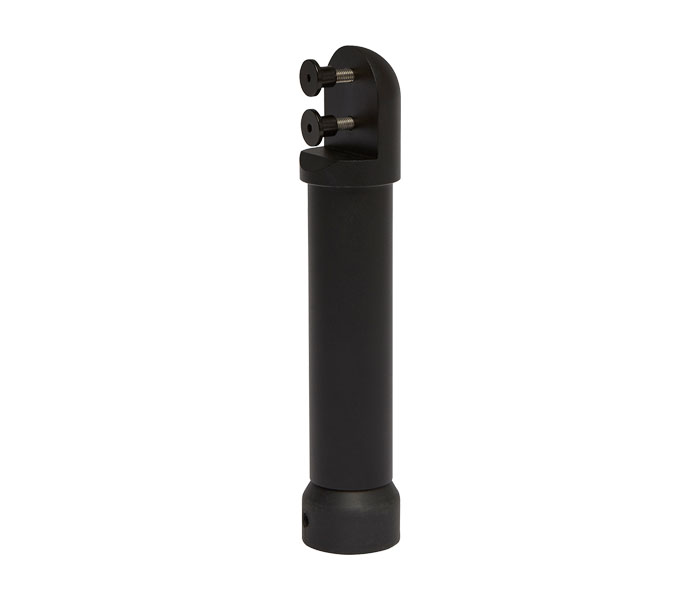

T353MB Leg T353MB dome top adjustable foot support leg, matt black finish

Dome Top Adjustable Foot Support

Height-adjustable aluminium leg with dome top cap, providing solid floor support for cubicle partitions. Screws and plastic plugs supplied.

  • Suitable for 13–20mm boards
  • Adjustable height for uneven floors
  • Dome top cap for a clean finish
  • Screws and plastic plugs supplied
MB — Matt Black

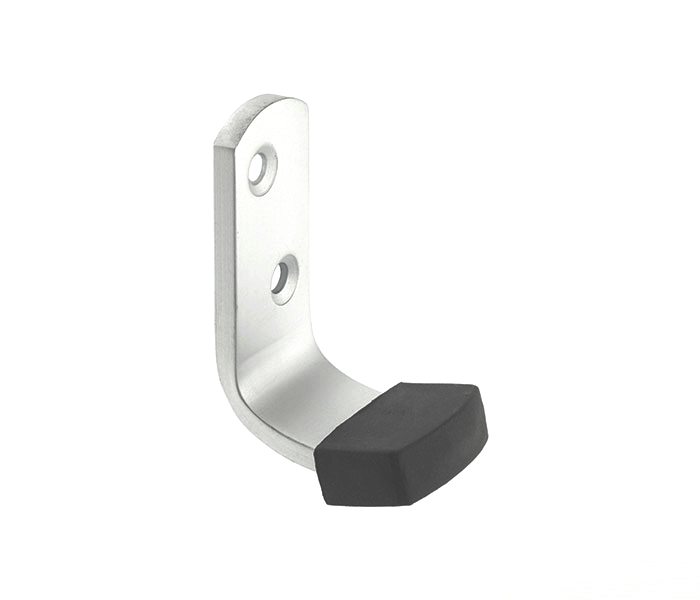

T504SA Accessory T504SA coat hook with integrated rubber buffer, satin anodised aluminium finish

Coat Hook / Buffer

Robust coat hook with integrated buffer, designed to withstand heavy daily use. Fitted to the rear of each cubicle door as standard.

  • Heavy-duty construction
  • Integrated rubber buffer
  • Concealed fixings
SAA — Satin Anodised Aluminium

Technical Downloads

Need the full specification?

Request manufacturer datasheets for any component above — tell us the product codes you are interested in and we will email the documents back to you.

Request hardware datasheet

Ready to Configure?

All hardware shown above is included as standard with every cubicle system. Start configuring your bespoke washroom today.

Open Configurator View Quote Basket
